4G Mobile DVR Kit with AI Monitoring and Active Braking AEBS System for Trucks
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-9024C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Power Supply: | DC8V-36V | Storage Temperature: | -40℃ - 85℃ |
|---|---|---|---|
| Image Sensor: | 1/3CMOS | Horizontal Resolution: | 700 TV Lines |
| Working Current: | 370MA≤ | Operating Temperature: | -20~+70℃ |
Product Description
AEBS Active Emergency Braking System for Construction & Commercial Vehicles
Overview
Every year, over 60% of traffic accidents in China are linked to fatigue driving, and 48% of crashes result from delayed braking response. Construction vehicles—dump trucks, concrete mixers, and freight trucks—operate in complex urban environments with large blind spots, making them high-risk assets on the road.
Our AEBS (Advanced Emergency Braking System) delivers a complete "end-to-cloud" safety solution. Combining multi-sensor perception (ADAS + DSM + BSD radar-vision), intelligent decision-making algorithms, and active braking execution, it provides real-time monitoring, tiered warnings, and automatic emergency braking to prevent collisions—or significantly reduce their severity.
How It Works
The system operates on a three-layer architecture:
| Layer | Function |
|---|---|
| Perception Layer | ADAS camera (forward collision, lane departure, pedestrian detection), DSM camera (driver fatigue/distraction), BSD blind-spot cameras (front/right side), optional millimeter-wave radar (up to 200m detection) |
| Decision Layer | AI algorithms process sensor data in real time, classifying risks into warning, light-brake, and full-brake stages based on distance and speed |
| Execution Layer | An electric motor or pneumatic valve actively presses the brake pedal when the driver fails to respond—delivering autonomous emergency braking without driver intervention |
Key Safety Functions
-
Forward Collision Avoidance (ADAS + AEBS)
- Detects vehicles, pedestrians, and obstacles ahead
- Speed range: 5–100 km/h
- Detection distance: up to 140m (camera) or 200m (radar)
- Three-stage response: warning → light braking → full emergency braking
- Automatically disengages if driver steers or brakes
-

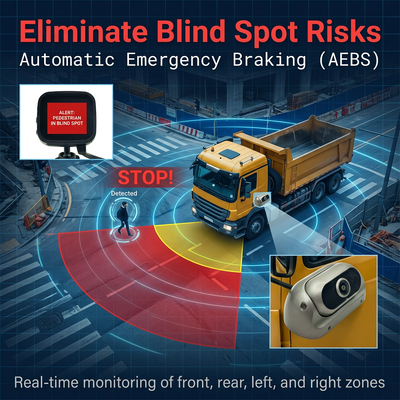

Blind Spot Braking (Front & Right BSD)
- Right-side blind spot: Covers 6m forward, 3m wide; brake zone within 0.7m; speed 5–30 km/h
- Front blind spot: Covers 2m forward, vehicle width; brake zone within 2m; speed 0–5 km/h
- Left-side blind spot: Covers 0–1m width, 2m forward to 2m rear; speed 5–35 km/h
- Three-stage response: alert → light brake → full brake (active at different distances)
-
Driver State Monitoring (DSM)
- Detects: fatigue (yawning/eye-closing), distraction, phone use, smoking, and seatbelt status
- Accuracy: ≥98% under normal conditions
- Audio alerts only (does not trigger AEBS braking)
- Compliant with multiple regional standards (Jiangsu, Shaanxi, Chongqing, Sichuan, etc.)
-
Cloud Platform & Risk Control
- Real-time vehicle tracking with location, speed, and event logs
- Tiered alert handling: AI detection → platform classification → manual verification → intervention
- Driver and fleet performance scoring for safety training and insurance underwriting
- Supports "Technology + Insurance" model to reduce operational risk

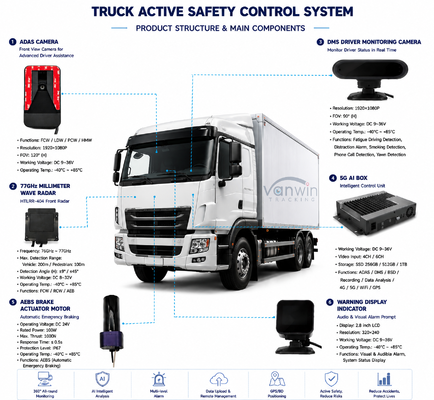

Key Specifications
| Component | Specification |
|---|---|

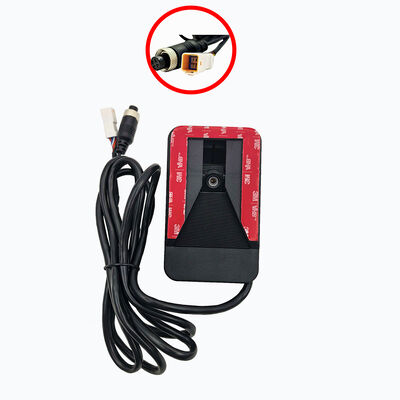

| ADAS Camera | 1/2.8" CMOS, 1280×720, 6mm lens, 56° horizontal FOV, IP54 |
| DSM Camera | 1/4" CMOS, 1MP, 4mm lens, 61.8° horizontal FOV, IP54 |
| BSD Camera | Front and right blind-spot coverage with 3-stage distance calibration |
| Radar (Optional) | Medium/long-range millimeter wave, up to 200m detection, 128 tracking targets |
| AEBS Actuator | Electric motor or pneumatic valve; non-invasive pedal attachment; no modification to brake system |
| Voltage Range | 9–36V DC |
| Operating Temp | -30°C to +70°C |
| Platform | Web dashboard + mobile app; real-time alerts, video replay, driver scoring, and risk reports |
Installation Highlights
- ADAS camera mounted on windshield centerline (2.0–2.3m height)
- DSM camera on A-pillar, 80–100cm from driver, ≤30° angle to eye level
- BSD cameras calibrated to specific zones (3m calibration points, width beyond vehicle sides)
- AEBS actuator installed on brake pedal with secure cable/pulley system; no interference with normal pedal operation
Why Choose Our AEBS
- Proven deployment: Over 1,660 mining trucks and 2,000+ dump trucks installed with positive feedback
- Full-stack self-developed: Proprietary perception-fusion-control algorithms; data-driven iteration loop
- Turnkey solution: Hardware + cloud platform + mobile app + installation + ongoing risk control services
- Compliance-ready: Meets multiple provincial and national standards (GB7258, JT/T 883, 1242, etc.)
- Scalable: Suitable for dump trucks, concrete mixers, freight trucks, mining vehicles, and more
Product Images
