AEBS Automatic Emergency Braking System with 77GHz Millimeter Wave Radar ADAS + DMS and 4G GPS Tracking for Vehicle Safety
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | VW-AEBS-A4 |
| Document: | Truck technology risk contr...on.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 1 |
| Packaging Details: | Neutral Package, custom package available |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 |
|
Detail Information |
|||
| Product Type: | Automatic Emergency Braking System (AEBS) | Safety Technology: | ADAS + DMS + 77GHz Millimeter Wave Radar |
|---|---|---|---|
| Braking Function: | Automatic Emergency Braking (AEB) | ADAS Functions: | FCW / LDW / Vehicle & Pedestrian Detection |
| Driver Monitoring: | Fatigue / Distraction / Smoking / Phone Detection | Radar Frequency: | Frequency 77GHz Millimeter Wave Radar |
| Brake Actuator: | Electric Brake Actuator | Connectivity: | 4G Video + GPS Tracking |
| Platform Support: | Cloud Platform & Real-Time Fleet Management | Application: | Trucks / Buses / Commercial & Special Vehicles |
| Highlight: | 77GHz Millimeter Wave Radar AEBS Automatic Emergency Braking System,ADAS + DMS Mobile DVR,4G GPS Tracking Vehicle Safety System |
||
Product Description

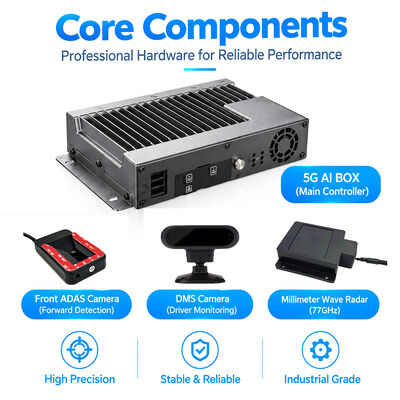

The AEBS Automatic Emergency Braking System is an intelligent active safety solution designed for commercial vehicles, trucks, and fleet transportation. This integrated system combines ADAS forward collision warning, DMS driver monitoring, 77GHz millimeter wave radar, AI-based decision making, and electric brake actuation to provide comprehensive multi-layer safety protection.
The ADAS camera uses deep-learning algorithms to monitor the road environment ahead in real-time, supporting:
- Forward Collision Warning (FCW)
- Lane Departure Warning (LDW)
- Pedestrian Collision Warning
- Vehicle Proximity Warning
- Vehicle, Cyclist, and Pedestrian Detection
- Lane-Mark Recognition

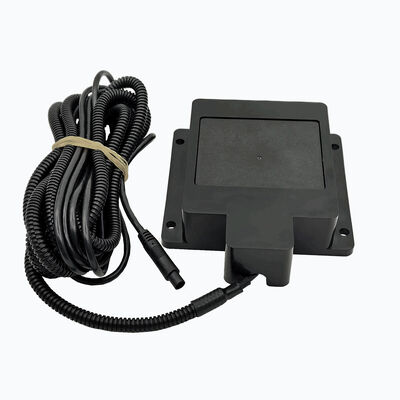

The integrated millimeter wave radar provides reliable vehicle and pedestrian detection with key capabilities:
- 76-77 GHz operating frequency
- Vehicle detection range up to 200 m
- Pedestrian detection range up to 100 m
- Up to 128 tracked targets
- FCW and RCW support
- IP6K9K / IP6K7 protection rating
- Operating temperature: -40°C to +85°C

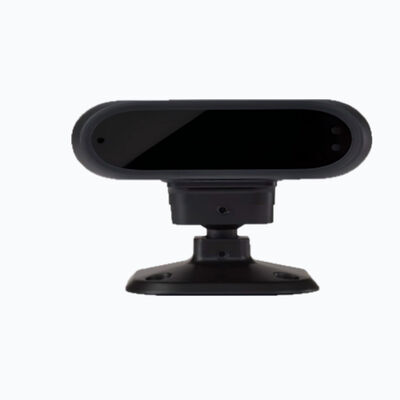

The DMS camera uses AI and deep-learning algorithms to analyze driver behavior in real-time, detecting:
- Fatigue and drowsiness
- Eye closure and yawning
- Looking away from road
- Phone use and smoking
- Head-down driving
- Camera obstruction

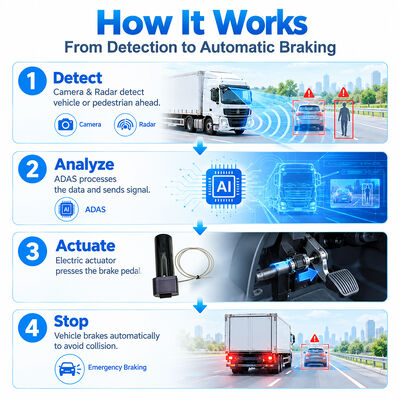

When cameras and radar identify imminent collision risks, the AEBS system performs graded deceleration and automatic emergency braking through the electric brake actuator.

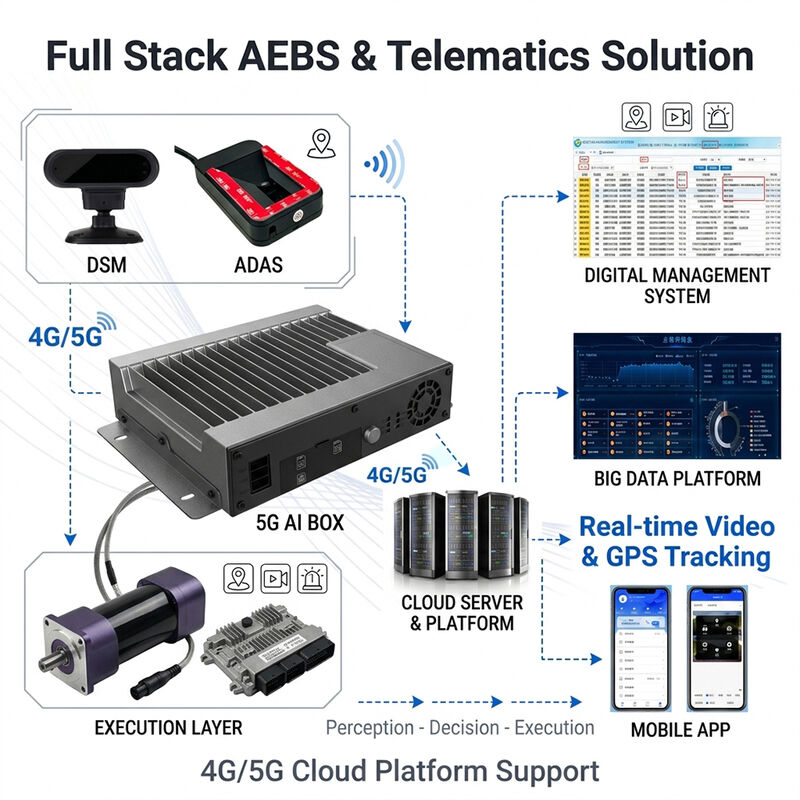

Integrated with in-vehicle terminal and cloud platform for comprehensive fleet management:
- Real-time video monitoring and GPS tracking
- Safety alert transmission and video playback
- Risk-event management and driver information
- Cloud-based fleet monitoring and reporting
