AI 4G GPS Mobile DVR with 77GHz Millimeter Wave Radar and ADAS DMS BSD for Automatic Emergency Braking System
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | VW-AEBS-A4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 1 |
| Packaging Details: | Neutral Package, custom package available |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 |
|
Detail Information |
|||
| Product Type: | Automatic Emergency Braking System (AEBS) | Safety Technology: | ADAS + DMS + 77GHz Millimeter Wave Radar |
|---|---|---|---|
| Braking Function: | Automatic Emergency Braking (AEB) | ADAS Functions: | FCW / LDW / Vehicle & Pedestrian Detection |
| Driver Monitoring: | Fatigue / Distraction / Smoking / Phone Detection | Radar Frequency: | Frequency 77GHz Millimeter Wave Radar |
| Brake Actuator: | Electric Brake Actuator | Connectivity: | 4G Video + GPS Tracking |
| Platform Support: | Cloud Platform & Real-Time Fleet Management | Application: | Trucks / Buses / Commercial & Special Vehicles |
| Highlight: | AI 4G GPS Mobile DVR,77GHz Millimeter Wave Radar AEBS System,ADAS DMS BSD Automatic Emergency Braking System |
||
Product Description
Digital Brake Motor AEBS Active Safety Kit with AI 4G GPS WIFI MDVR Dashcam Recorder ADAS DMS BSD Radar Alarm System
Product Introduction
AEBS Automatic Emergency Braking System for Commercial Vehicles
Intelligent Active Safety Solution with ADAS + DMS + 77GHz Millimeter Wave Radar
The AEBS Automatic Emergency Braking System is an intelligent active safety solution designed for commercial vehicles, trucks and fleet transportation. By integrating ADAS forward collision warning, DMS driver monitoring, 77GHz millimeter wave radar, AI-based decision making and electric brake actuation, the system provides multi-layer safety protection from environmental perception to automatic braking.
The system uses cameras and millimeter wave radar to monitor the road environment in real time and identify potential risks such as vehicles, pedestrians, cyclists, forward collisions and lane departures. When an imminent collision risk is detected and the driver does not respond in time, the AEBS system can initiate graded braking intervention to help avoid or reduce the severity of an accident.
The integrated solution also supports driver fatigue and distraction monitoring, including eye closure, yawning, looking away, phone use, smoking and other hazardous driving behaviors.
With an integrated AI control box, 4G vehicle video recorder, GPS tracking and cloud-based safety management platform, the solution enables real-time video monitoring, vehicle tracking, safety alerts, risk management, data analysis and fleet management.
AEBS
Automatic Emergency Braking System
AEB
ADAS
Advanced Driver Assistance System
DMS
Driver Monitoring System
77GHz Millimeter Wave Radar
Forward Collision Warning
FCW
Lane Departure Warning
LDW
Pedestrian Detection
Cyclist Detection
Collision Avoidance
Active Safety
Automatic Braking
Emergency Braking
AI Vehicle Safety
Fleet Safety
Driver Monitoring
Fatigue Detection
Vehicle Telematics
4G Video Recorder
GPS Tracking
Cloud Platform
Fleet Management
Real-Time Video Monitoring
Commercial Vehicle Safety
Truck Safety System
Advanced ADAS Forward Collision Detection
The ADAS camera uses deep-learning algorithms to monitor the road environment ahead in real time.
It supports:
- Forward Collision Warning (FCW)
- Lane Departure Warning (LDW)
- Pedestrian Collision Warning
- Vehicle Proximity Warning
- Vehicle Detection
- Cyclist Detection
- Pedestrian Detection
- Lane-Mark Recognition
According to the specifications in the document, the ADAS system provides vehicle detection of ≥ 150 m, cyclist detection of ≥ 70 m, pedestrian detection of ≥ 70 m, and lane-marking detection of ≥ 60 m. Vehicle detection rate is specified at ≥ 99%, while cyclist and pedestrian detection rates are ≥ 95%.
77GHz Millimeter Wave Radar Detection
The integrated millimeter wave radar provides an additional sensing layer for reliable vehicle and pedestrian detection.
Key capabilities include:
- 76-77 GHz operating frequency
- Vehicle detection range up to 200 m
- Pedestrian detection range up to 100 m
- Up to 128 tracked targets
- Medium- and long-range detection
- FCW and RCW support
- Integration with vision-based ADAS
- Automotive-grade design
- IP6K9K / IP6K7 protection
- Operating temperature: -40 °C to +85°C
The radar is designed to complement camera-based perception and improve environmental awareness under different driving conditions.
Intelligent DMS Driver Monitoring
The DMS camera uses AI and deep-learning algorithms to analyze driver behavior in real time.
It can detect:
- Fatigue / drowsiness
- Eye closure
- Yawning
- Looking away
- Phone use
- Smoking
- Head-down driving
- Driver not detected
- Camera obstruction
The system provides timely audible alerts to help drivers maintain safer driving behavior.
The document specifies overall DMS alert accuracy above 95%, with particularly high performance for eye-closure and yawning detection.
Important: DMS is designed as a driver warning and monitoring function; the document states that DMS driver-behavior analysis does not directly control the AEBS braking function.
Automatic Emergency Braking
When cameras and millimeter wave radar identify an imminent collision risk, the AEBS system evaluates the surrounding environment and braking conditions.
If the driver fails to slow down or brake, the system can perform graded deceleration and automatic emergency braking through the electric brake actuator.
The AEBS solution supports:
Detect → Analyze → Warn → Brake → Reduce Collision Risk
The documented AEB parameters include:
- Safety braking distance: 3 - 50 m
- Maximum deceleration: adjustable
- Target types: vehicles, pedestrians and cyclists
- Applicable roads: highways, urban roads and rural roads
- Applicable conditions: daytime and nighttime
- Mistriggering rate: 1/100,000 km according to the document
The system automatically exits intervention when the driver takes emergency measures such as steering or braking.
AI Intelligent Decision Making

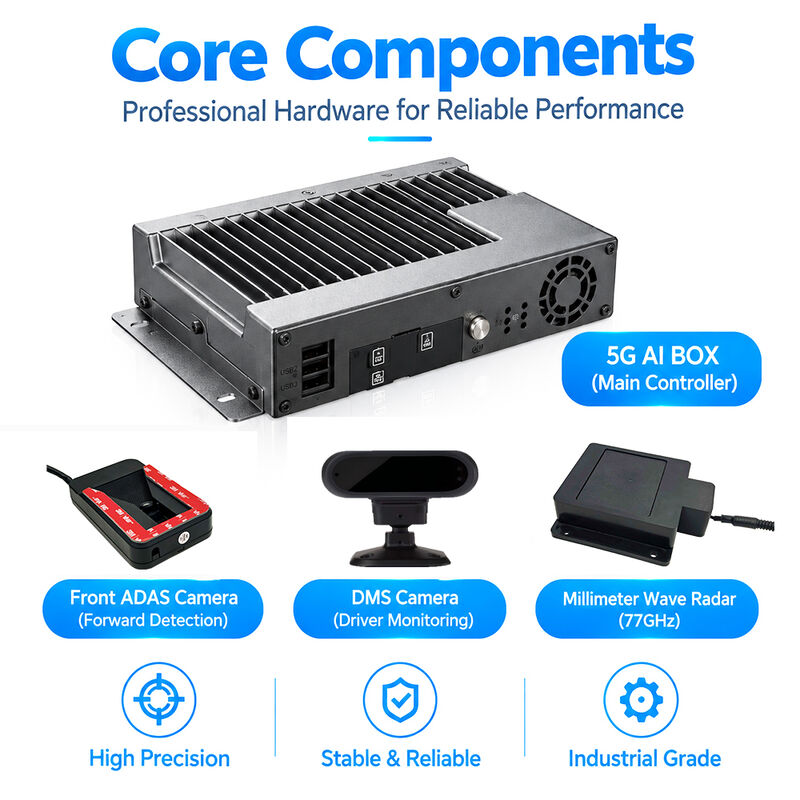

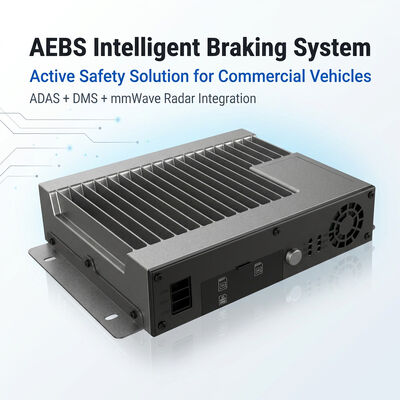

The AI control box / central controller integrates sensor information and performs intelligent processing and decision making.
The system architecture follows:
Perception Layer → Decision-Making Layer → Execution Layer
This enables coordinated operation between:
ADAS + DMS + Millimeter Wave Radar + AI Controller + Electric Brake Actuator
for an integrated active safety solution.
Electric Brake Actuator
The electric brake actuator is the execution component of the AEBS system.
When an automatic braking command is generated, the actuator mechanically intervenes with the vehicle's brake pedal to perform emergency braking.
This creates a complete closed-loop safety process:
Sensor Detection → AI Decision → Brake Command → Automatic Braking
4G Video & GPS Telematics
The solution can be integrated with an in-vehicle terminal / 4G video recorder and cloud platform.
Supported functions include:
- Real-time video monitoring
- GPS vehicle tracking
- Vehicle location management
- Safety alert transmission
- Video playback
- Risk-event management
- Driver and vehicle information management
- Cloud-based fleet monitoring
Smart Cloud Risk-Control Platform
The cloud platform provides visual fleet safety management.
It supports:
- Real-time vehicle monitoring
- Route tracking
- Safety alerts
- Collision-risk alerts
- Video evidence
- Driver management
- Vehicle management
- Safety reports
- Data analysis
- Risk-control operations
- Fleet safety assessment
This creates an integrated Vehicle + Driver + Device + Cloud Platform safety management ecosystem.
