AI MDVR with 77GHz Radar AEBS Dashcam Recorder for 200m Vehicle Detection and Graded Deceleration Braking
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-9024C |
| Document: | Truck technology risk contr...on.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Radar Frequency: | 76 GHz - 77 GHz Millimeter-Wave Radar / 4D Radar | Radar Channels & Mode: | 2T4R, FMCW (CS+DBF) |
|---|---|---|---|
| Radar Detection Range: | Forward Vehicle Up To 200m, Pedestrian Up To 100m | Target Tracking Capacity: | Up To 128 Moving/stationary Targets Simultaneously |
| Radar Protection Rating: | IP6K9K (Dust & High-pressure Cleaning), IP6K7 Waterproof | Brake Actuator: | Digital Brake Motor / Cable-type Execution Motor |
| Braking Safety Distance: | 3m ~ 50m | Max Deceleration: | 100km/h (Fully Adjustable Based On Vehicle Type) |
| Braking Strategy: | Graded Deceleration (FCW Warning Level 1 Assist Level 2 Emergency Braking) | Mistriggering Rate: | Less Than 1 / 100,000 Km |
| Cloud Telematics: | 24/7 Smart Cloud Fleet Risk Control Platform, Tiered Alarm Intervention Mechanism, Remote Mobile APP | Target Applications: | Heavy-Duty Trucks, Tractors, Concrete Mixer Trucks, Dumper Trucks, Mining Shovel Trucks, Buses, Logistics Vans |
| Highlight: | 77GHz Radar AI MDVR,200m Vehicle Detection AEBS Dashcam Recorder,Graded Deceleration Braking Automatic Emergency Braking System |
||
Product Description
AI 4G GPS WIFI MDVR Dashcam Recorder with 77GHz Radar AEBS Digital Brake Motor Active Collision Mitigation Alarm System
Product Description
Overview

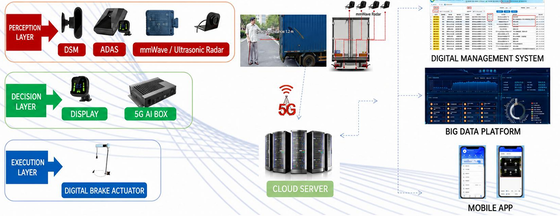

Our AEBS (Automatic Emergency Braking System) is an intelligent active safety solution designed for commercial vehicles, trucks, and fleets. It integrates ADAS collision warning, DMS driver monitoring, 77GHz millimeter-wave radar, AI decision-making, and an electric brake actuator to provide comprehensive protection from perception to automatic braking.
Key Features
- ADAS Forward Collision Warning** – Detects vehicles (up to 150m), pedestrians and cyclists (up to 70m), and lane departures using deep-learning algorithms, alerting drivers to potential risks in advance.
- 77GHz Millimeter-Wave Radar** – Offers long-range detection up to 200m for vehicles and 100m for pedestrians, tracking up to 128 targets simultaneously. Automotive-grade design with IP6K9K protection and -40°C to +85°C operating range.
- DMS Driver Monitoring** – Uses AI to detect fatigue, eye closure, yawning, phone use, smoking, distraction, and camera obstruction. Alert accuracy exceeds 95%, with eye-closure detection above 99%.
- Automatic Emergency Braking** – When an imminent collision is detected and the driver fails to respond, the system activates graded braking to avoid or mitigate impact. The system automatically disengages when the driver takes evasive action.
- 4G Video & GPS Tracking** – Supports real-time video surveillance, vehicle location tracking, and remote fleet management.
- Cloud-Based Risk Control Platform** – Enables real-time monitoring, tiered safety alerts, route tracking, data analytics, and safety reporting. After installation, accident rates dropped by 55% year-over-year in field applications.
Compliance
The system meets multiple regional standards including JT/T 883, JT/T 1242, T/JSATL 13-2017 (Jiangsu), Sichuan T/SCSDX 0001-2019, and Chongqing Yu Dao Yun [2019] No. 24.
Applications
Ideal for trucks, tractors, concrete mixer trucks, mining vehicles, passenger transport, and logistics fleets.
Why Choose Us
- Founded in 2015, over 70% R&D team
- Proprietary perception-fusion-planning-control algorithms
- Deployed on 1,660+ mining vehicles with positive feedback
- "Technology + Insurance" business model for proven risk reduction
- Trusted by 100+ special vehicle partner

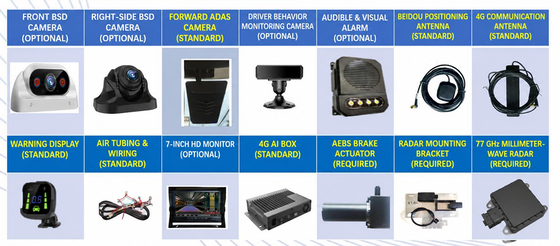

| Item | Detail |
|---|---|
| Cameras | ADAS (720P), DSM (1MP), BSD (front/right) |
| Radar (optional) | Up to 200m, 128 targets |
| Actuator | Electric motor or pneumatic valve, non-invasive installation |
| Voltage | 9-36V DC |
| Temperature Range | -30°C to +70°C |
| Platform | Web + mobile: real-time alerts, video, driver scoring, risk reports |
Q1: What is AEBS and how does it work?
AEBS (Automatic Emergency Braking System) is an intelligent active safety system for commercial vehicles. It integrates ADAS camera, 77GHz millimeter-wave radar, DMS driver monitoring, AI decision-making, and an electric brake actuator. When the system detects an imminent collision risk and the driver does not respond in time, it activates graded automatic braking to avoid or reduce the impact.
Q2: What types of vehicles is this system suitable for?
This system is designed for commercial vehicles including trucks, tractors, concrete mixer trucks, mining vehicles, passenger buses, logistics vans, and fleet vehicles of all sizes.
Q3: What is the detection range of the radar and camera?
- Radar: Vehicle detection up to 200m; pedestrian detection up to 100m
- ADAS
camera: Vehicle detection up to 150m; pedestrian/cyclist detection up to 70m; lane-marking detection up
to 60m
Q4: What driver behaviors can the DMS system detect?
DMS detects fatigue, eye closure, yawning, looking away, phone use, smoking, head-down driving, camera obstruction, and driver absence. Alert accuracy exceeds 95%, with eye-closure detection above 99%.
Q5: Does the DMS system control the braking function?
No. DMS provides driver alerts only and does not directly control the AEBS braking function. Braking decisions are made by the AI controller based on ADAS and radar data.
Q6: What are the operating conditions for the radar?
- Operating voltage: 8–32V DC (12V/24V nominal)
- Operating temperature: -40°C
to +85°C
- Protection rating: IP6K9K (dust and high-pressure cleaning) and IP6K7 (water
immersion)
- Power consumption: 4W
Q7: Does the system support 4G, GPS, and cloud platform?
Yes. The system includes a 4G video recorder, GPS tracking, and a cloud-based fleet management platform. It supports real-time video monitoring, vehicle tracking, safety alerts, data analytics, and risk reporting.
Q8: What is the cloud platform used for?
The cloud platform provides visual fleet safety management. It supports real-time monitoring, route tracking, tiered collision-risk alerts, driver and vehicle profiles, safety reporting, and manual intervention for high-risk events.
Q9: Does the system comply with industry regulations?
Yes. The system complies with multiple standards including JT/T 883, JT/T 1242, T/JSATL 13-2017 (Jiangsu), T/SCSDX 0001-2019 (Sichuan), and Chongqing Yu Dao Yun [2019] No. 24.
Q10: What is the installation process like?

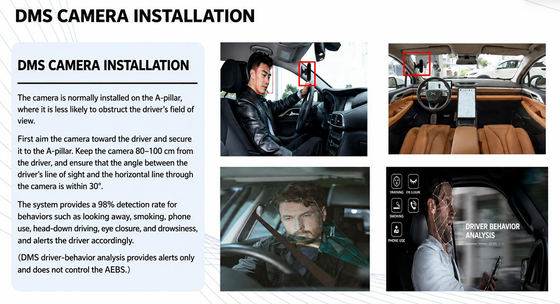

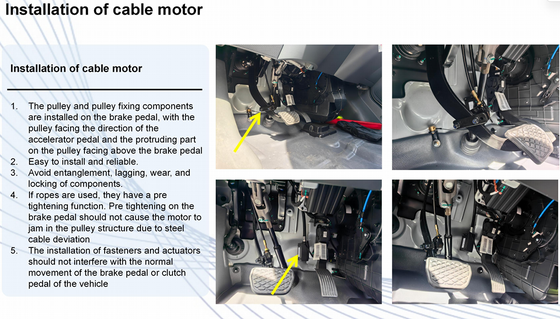

Installation includes mounting the ADAS camera on the windshield centerline, DMS camera on the A-pillar, radar on the front bumper, and the electric brake actuator on the brake pedal. Professional installation is recommended and we provide technical support and calibration guidance.
Q11: Has this system been proven in real-world applications?
Yes. The system has been deployed on over 1,660 mining vehicles and thousands of commercial trucks, concrete mixer trucks, and passenger buses across China. Field data shows accident rates dropped by 55% year-over-year after installation.
Q12: What is your business model?
We offer both direct product sales and a "Technology + Insurance" model, providing proven risk reduction for commercial fleets. We also support OEM and customized solutions.
Q13: Do you provide sample units for testing?
Yes. We can provide sample units for evaluation. Please contact our sales team for sample pricing, shipping costs, and delivery time.
Q14: What after-sales support do you offer?
We provide technical support, installation guidance, calibration assistance, warranty service, and ongoing cloud platform maintenance.
