AEBS System with 77GHz Millimeter Wave Radar ADAS + DMS and 4G/5G Connectivity for Fleet Telematics
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | VW-AEBS-A4 |
| Document: | Truck technology risk contr...on.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 1 |
| Packaging Details: | Neutral Package, custom package available |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 |
|
Detail Information |
|||
| Product Type: | Automatic Emergency Braking System (AEBS) | Safety Technology: | ADAS + DMS + 77GHz Millimeter Wave Radar |
|---|---|---|---|
| Braking Function: | Automatic Emergency Braking (AEB) | ADAS Functions: | FCW / LDW / Vehicle & Pedestrian Detection |
| Driver Monitoring: | Fatigue / Distraction / Smoking / Phone Detection | Radar Frequency: | Frequency 77GHz Millimeter Wave Radar |
| Brake Actuator: | Electric Brake Actuator | Connectivity: | 4G Video + GPS Tracking |
| Platform Support: | Cloud Platform & Real-Time Fleet Management | Application: | Trucks / Buses / Commercial & Special Vehicles |
| Highlight: | 77GHz Millimeter Wave Radar AEBS System,ADAS + DMS Automatic Emergency Braking System,4G/5G Connectivity Fleet Telematics System |
||
Product Description
AEBS Automatic Emergency Braking System for Commercial Vehicles - An intelligent active safety solution integrating ADAS forward collision warning, DMS driver monitoring, 77GHz millimeter wave radar, AI-based decision making and electric brake actuation.
This multi-layer safety protection system monitors road environment in real-time and identifies potential risks including vehicles, pedestrians, cyclists, forward collisions and lane departures.

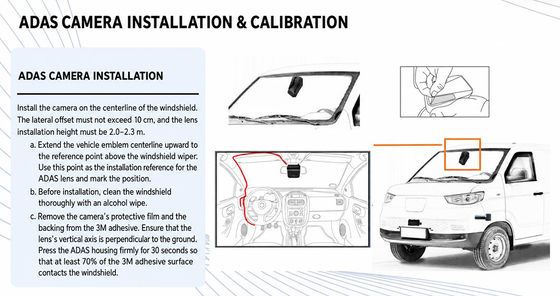

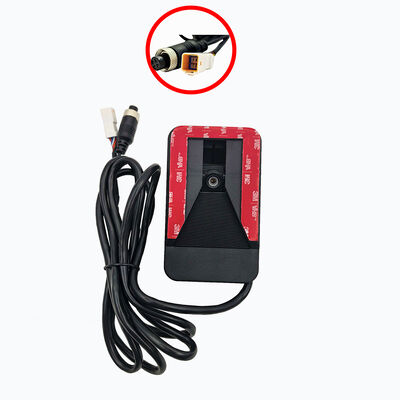

The ADAS camera uses deep-learning algorithms for real-time road environment monitoring with capabilities including:
- Forward Collision Warning (FCW)
- Lane Departure Warning (LDW)
- Pedestrian Collision Warning
- Vehicle Proximity Warning
- Vehicle, Cyclist, and Pedestrian Detection
- Lane-Mark Recognition
Detection Ranges: Vehicle ≥ 150m, Cyclist ≥ 70m, Pedestrian ≥ 70m, Lane-marking ≥ 60m
Detection Accuracy: Vehicle ≥ 99%, Cyclist & Pedestrian ≥ 95%
Complementary radar sensing layer providing reliable detection capabilities:
- 76-77 GHz operating frequency
- Vehicle detection range up to 200m
- Pedestrian detection range up to 100m
- Up to 128 tracked targets
- Medium- and long-range detection
- FCW and RCW support
Protection Rating: IP6K9K / IP6K7
Operating Temperature: -40°C to +85°C
AI-powered driver behavior analysis detecting:
- Fatigue and drowsiness
- Eye closure and yawning
- Looking away from road
- Phone use and smoking
- Head-down driving
- Camera obstruction
Alert Accuracy: Overall DMS alert accuracy above 95%
When imminent collision risk is detected, the system performs graded deceleration and automatic emergency braking through electric brake actuator.

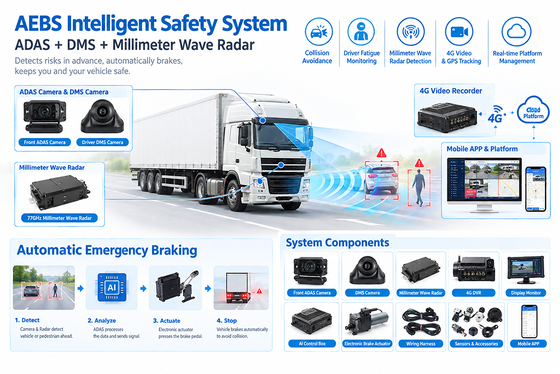

Safety Process: Detect → Analyze → Warn → Brake → Reduce Collision Risk
AEB Parameters:
- Safety braking distance: 3 - 50m
- Maximum deceleration: adjustable
- Target types: vehicles, pedestrians and cyclists
- Applicable roads: highways, urban and rural roads
- Applicable conditions: daytime and nighttime
- Mistriggering rate: 1/100,000 km

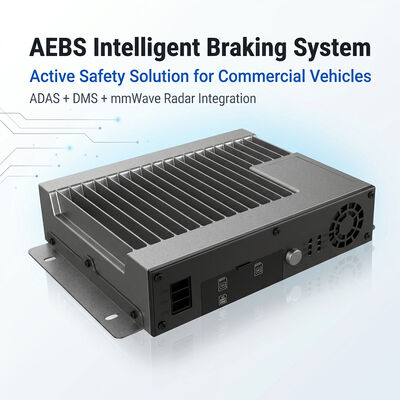

The AI control box integrates sensor information and performs intelligent processing following the architecture:
Perception Layer → Decision-Making Layer → Execution Layer

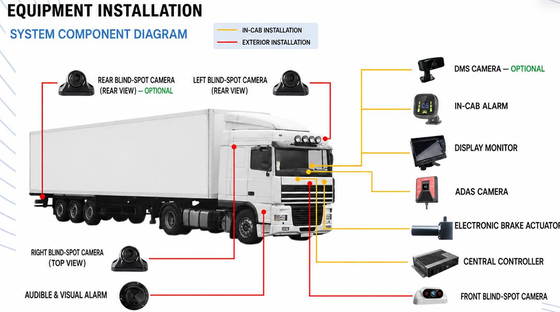

Coordinates operation between ADAS, DMS, Millimeter Wave Radar, AI Controller, and Electric Brake Actuator for integrated active safety.
Integrated with in-vehicle terminal and cloud platform supporting:
- Real-time video monitoring
- GPS vehicle tracking
- Safety alert transmission
- Video playback and risk-event management
- Driver and vehicle information management
Visual fleet safety management platform providing:
- Real-time vehicle monitoring and route tracking
- Safety and collision-risk alerts
- Video evidence and safety reports
- Driver and vehicle management
- Data analysis and risk-control operations
- Fleet safety assessment
Creates an integrated Vehicle + Driver + Device + Cloud Platform safety management ecosystem.
